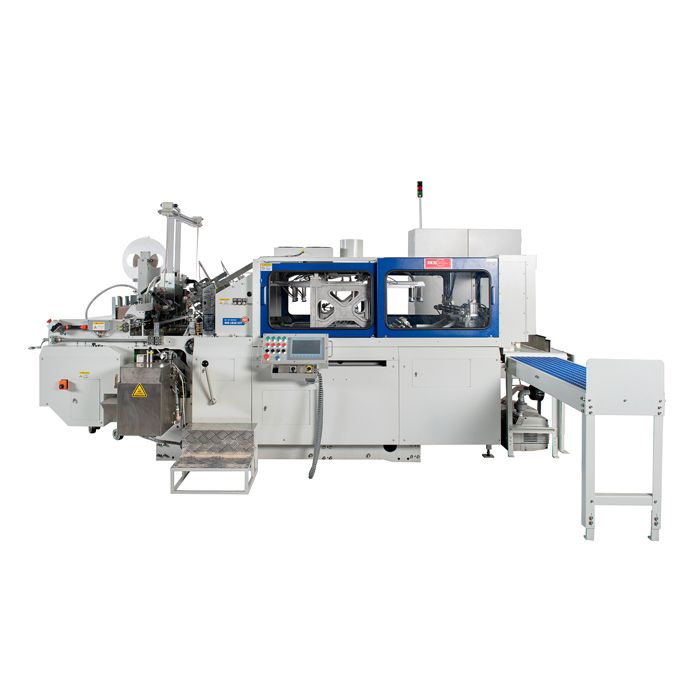

HX60 PLUS High Speed Hardcover Case Making Machine

Parameter

• Speed
• 60pcs/min

• Board Thickness
• 1-4mm(optional device for minimum thickness 0.6mm)

• Spine Width
• 6-80mm

• Width of Channel Rail
• 4-15mm

• Thickness of Center Board Strip
• 1-4mm(the most thickness is 2.5mm when width is 6mm)

• Thickness of Flexible Spine
• 0.3-0.5mm

• Thickness of Cover Material
• 0.1-0.3mm

• Maximum Size (Expand) of Hardcover
• 680×390mm

• Minimum Size (Expand) of Hardcover
• 105×160mm

• Compressed Air Requirments
• 650L/min @6bar

• Power
• 15.5kW (Heating for Glue Melting 6kW)

• Weight
• 6300kg

• Dimensions
• 5.7×3.3
